Venom Pro XL


  • Dovetail Design
  • Four or Five All-Metal Razor Pins
  • Micro-Adjustable Windage and Elevation
  • 2nd- and 3rd-Axis Adjustments
  • 2-inch Aperture
  • 6061 T6 Construction
  • All Stainless Steel Hardware
  • Pin Sizes: 0.010, 0.015, or 0.019
  • Weight: 10.8 ounces
  • Threaded for an Optional Sight Light
  • Install the Lens of your choice using the Venom Series Lens Kit!
SKU: VDTMT Category:

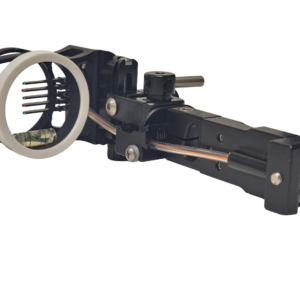

Venom Pro XL five-pin bow features a longer, adjustable sight radius that allows the user to find the perfect peep-to-pins distance. It is constructed of machined and anodized 6061 T6 aluminum with stainless steel hardware for strength, rigidity and durability. The Venom Pro XL’s aluminum sight housing has a 2-inch aperture that is threaded to accept optional Zeiss coated lenses. A highly visible 0.35-inch diameter, 1-inch-long bubble level is located at the bottom of the housing. Four or Five aluminum Razor Pins are independently adjustable for elevation, and three diameters of fiber-optic threads are available: 0.010-, 0.015- or 0.019-inch.

The Venom Pro XL is equipped with second- and third-axis adjustments that are located before the windage and elevation adjustments to allow for correct true-level positioning of the sights housing. The Venom Pro XL has major and micro windage and elevation adjustments, which allows for maximum accuracy as well as a wide range of adjustment. A lever lock secures the micro adjustments.

The Venom Pro XL features a long rail with a dovetail design that incorporates five detents at 3/4-inch increments for a total of three inches of sight-radius adjustment. The Venom Pro XL’s method of locking down the dovetail seats itself in the same exact position every time after removal for transportation. The Venom Pro XL also incorporates a threaded hole in the dovetailed rail for installation of a sight light, which prevents glare in the sight housing.

The Venom Pro XL measures 11 inches long and weighs 10.8 oz. Venom Pro Series bow sights are manufactured in the USA and carry Viper Archery Products’ limited lifetime warranty.

Additional information

Additional information

Pin Count

4-Pin, 5-Pin


0.8125 lbs


15 × 4.25 × 2.75 in

Pin Size

.010, .015, .019

Bow Hand

Left Hand, Right Hand
